Free wiring diagrams for Ford car stereo



Get free wiring diagrams for Ford car radio


FORD
ford


FORD FX3000 MADE IN KOREA BY INTERCONTI
A94 SX 18 C 8122 AA

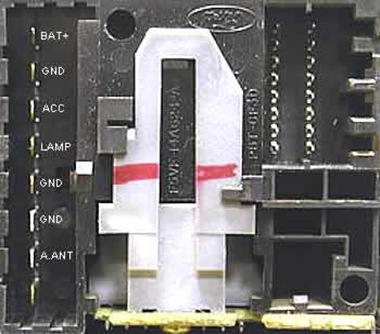

Ford fx3000 connector


FORD SOUND 2000

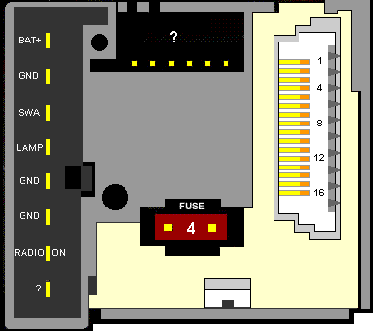

ford-sound-2000


FORD 1998 - 1999
ford-1998-99-connector

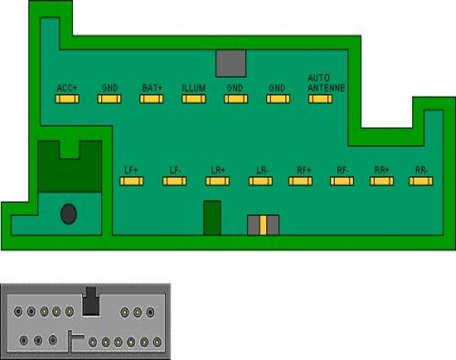

FORD 2006 R (VW SHARAN, FORD GALAXY)
95VW-18K876-JB FDZ7R2WM059374 Made In Portugal
ford-2006-car-radio-connector


FORD 2006 RDS (Portugal)
FORD 4500 (made in Brazil)
FORD 5000 RDS (Portugal) part no. 96AP-18K876-CC
FORD 7000 RDS (Portugal) part no. 95GB-18K876-BA
ford-2006rds


FORD 2007 RDS.
ford-2007-connector


FORD 2007 RDS 94FP-18K876-HA (Без внутреннего усилителя НЧ)
FORD 2007 SOUND2 RDS VWZ7Z3 (Без внутреннего усилителя НЧ)
ford2008rds


FORD 3500 (4S61-18K876-BA)
FORD 4500 (2S61-18C815-AF)
FORD 4500 (4S61-18C815-AA)
ford-3500-connector


FORD 3000, FORD 4000 (Разновидность разъёма)
ford-3000-4000-connector


FORD 3000, FORD 4000 (Ещё одна разновидность разъёма)
ford-3000-4000 connector


FORD 5000C
ford-5000c

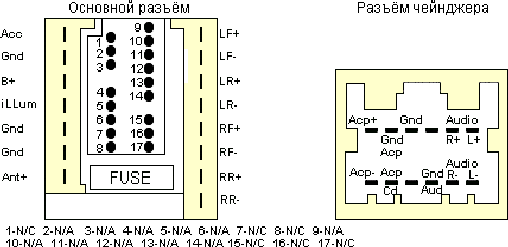

FORD 5000, FORD 6000, FORD 7000 (Разновидность разъёма)
ford-5000-6000-7000-autoradio-connector



FORD 5000 RDS EON (Portugal) part no. 98AP-18K876-BC

ford 5000 eon connector


FORD 6000 MNE MP3
ford-6000-mne-mp3


FORD 6006E CD RDS EON (1S7F-18C815-AD) VISTEON
ford6006e-cd-rds-eon


FORD E-STR 22DPS710
A91SX-18K876-EA (INTERCONTI)
ford-e-str-22dps710-connector

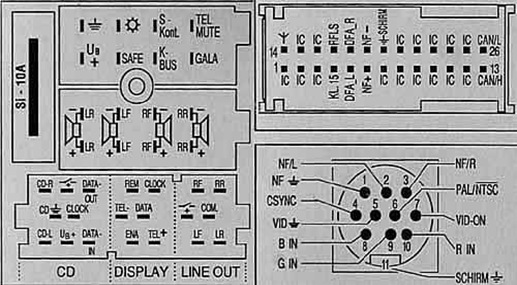

FORD Mondeo, Galaxy, Mazda, Ford CD MP3
ford-mondeo-car radio


FORD Windstar
ford-windstar-connector



FORD Radio Navigation System BP1422 (Germany)
ford_rns



FORD 1L2F-18C868-BB Made in MEXICO
ford-1l2f-18c868-bb


FORD 2028 (89GB-19B160-AA) Made In Japan
PRODUCED BY SONY CORPORATION
Casette not have its own power amplifiers
ford-2028


FORD 2008 RDS Made in Portugal
ford2008-rds


FORD F57F-18C852-BE (made in Mexico)
ford-f57f-mexico
