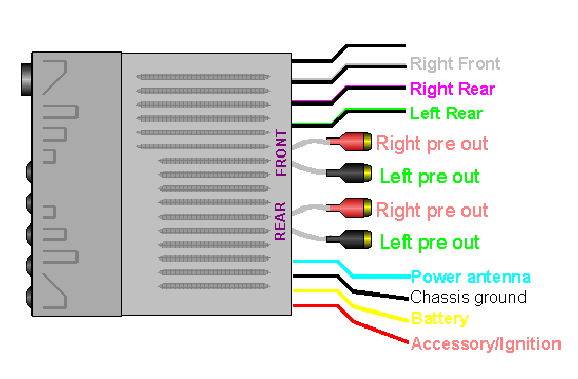

General wiring diagram for car radios
This is the general wiring harness for ANY aftermarket headunit. The only color missing is the blue/white which is your remote out.
Car Radio Wiring Diagrams
| Disclaimer |
| *All information on this site is provided "as is" without any warranty of any kind, either expressed or implied, including but not limited to fitness for a particular use. Any user assumes the entire risk as to the accuracy and use of this information. Please verify all wire colors and diagrams before applying any information. |
| Typical Head Unit Wire Harness | |
| Function | Typical Wire Colors |
| Memory / Constant 12V(+) | Yellow |
| Switch / Accessory | Red |
| Ground | Black |
| Illumination | Orange/White |
| Antenna Remote | Blue |
| Amp Remote | Blue/White |
| Left Front (+) | White |
| Left Front (-) | White/Black |
| Right Front (+) | Grey |
| Right Front (-) | Grey/Black |
| Left Rear (+) | Green |
| Left Rear (-) | Green/Black |
| Right Rear (+) | Violet |
| Right Rear (-) | Violet/Black |
 | |
